ORB (O-Ring Boss) Adapters

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

O-Ring Boss (ORB) Adapters

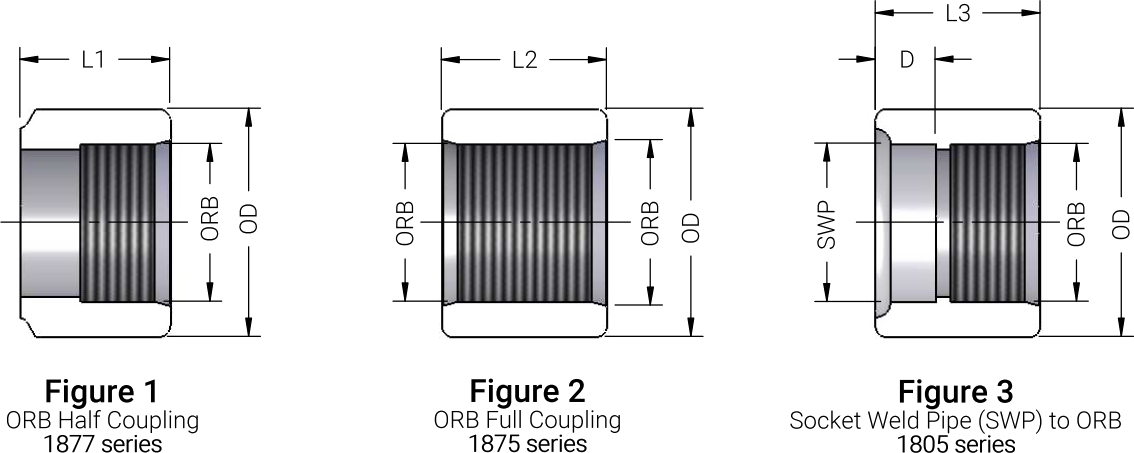

Figure 1 Half Coupling	Figure 2 Full Coupling	Figure 3 SWP/ORB	ORB (thread)	SWP (OD)	OD	D	L1	L2	L3
1877-04	1875-04-04	N/A	#4 (7/16"-20)	N/A	0.84	N/A	0.63	1.25	N/A
1877-06	1875-06-06	1805-06-06	#6 (9/16"-18)	3/8" (0.685)	0.97	0.38	0.75	1.38	1.00
1877-08	1875-08-08	1805-08-08	#8 (3/4"-16)	1/2" (0.845)	1.32	0.38	0.88	1.38	1.13
1877-10	1875-10-10	N/A	#10 (7/8"-14)	N/A	1.47	N/A	0.88	1.63	N/A
1877-12	1875-12-12	1805-12-12	#12 (1-1/16"-12)	3/4" (1.055)	1.66	0.50	1.13	1.63	1.38
1877-16	1875-16-16	1805-16-16	#16 (1-5/16"-12)	1" (1.320)	1.90	0.50	1.25	1.63	1.38
1877-20	1875-20-20	1805-20-20	#20 (1-5/8"-12)	1-1/4" (1.670)	2.38	0.63	1.25	1.63	1.50
1877-24	1875-24-24	1805-24-24	#24 (1-7/8"-12)	1-1/2" (1.910)	2.88	0.75	1.38	1.63	1.63
1877-32	1875-32-32	1805-32-32	#32 (2-1/2"-12)	2" (2.385)	3.50	0.75	1.50	1.63	1.75
