ORB (O-Ring Boss) Reducer

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

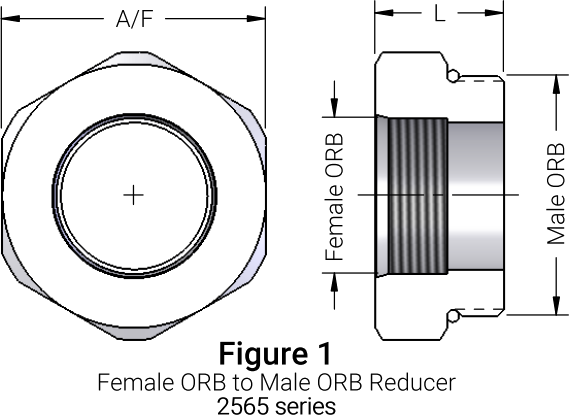

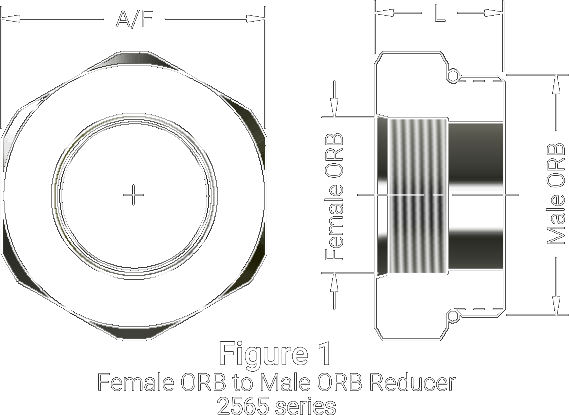

Female ORB to Male ORB Reducer
Figure 1 Reducer	Female ORB (thread)	Male ORB (thread)	L	A/F
2565-20	blank	#20 (1-5/8"-12)	1.16	1.88
2565-12-20	#12 (1-1/16"-12)	#20 (1-5/8"-12)	1.16	1.88
2565-16-20	#16 (1-5/16"-12)	#20 (1-5/8"-12)	1.16	1.88
2565-24	blank	#24 (1-7/8"-12)	1.22	2.13
2565-12-24	#12 (1-1/16"-12)	#24 (1-7/8"-12)	1.22	2.13
2565-16-24	#16 (1-5/16"-12)	#24 (1-7/8"-12)	1.22	2.13
2565-20-24	#20 (1-5/8"-12)	#24 (1-7/8"-12)	1.22	2.13
2565-32	blank	#32 (2-1/2"-12)	1.34	2.75
2565-16-32	#16 (1-5/16"-12)	#32 (2-1/2"-12)	1.34	2.75
2565-20-32	#20 (1-5/8"-12)	#32 (2-1/2"-12)	1.34	2.75
2565-24-32	#24 (1-7/8"-12)	#32 (2-1/2"-12)	1.34	2.75
