Crosses

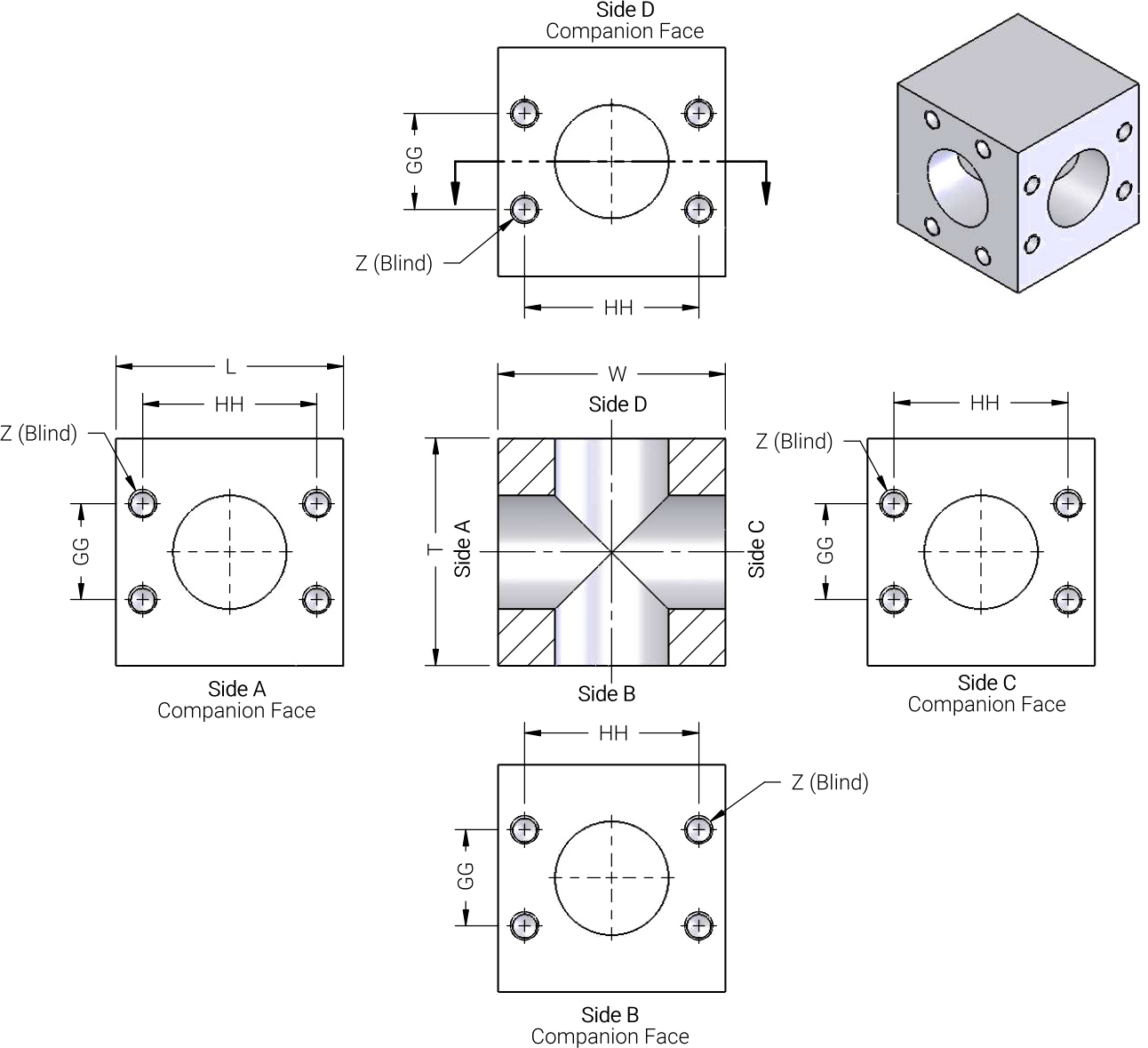

Cross - Companion/Companion/Companion/Companion
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Code 61 Companion/Companion/Companion/Companion Crosses | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Side A Comp | Side B Comp | Side C Comp | Side D Comp | Z | GG | HH | W | T | L |
1810-12-12-12-12 | 3/4" | 3/4" | 3/4" | 3/4" | 3/8"-16 | 0.875 | 1.875 | 2.50 | 2.50 | 2.50 |
1810-16-16-16-16 | 1" | 1" | 1" | 1" | 3/8"-16 | 1.031 | 2.062 | 3.00 | 2.75 | 3.00 |
1810-20-20-20-20 | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 7/16"-14 | 1.188 | 2.312 | 3.50 | 3.50 | 3.25 |
1810-24-24-24-24 | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1/2"-13 | 1.406 | 2.750 | 4.00 | 4.00 | 4.00 |
1810-32-32-32-32 | 2" | 2" | 2" | 2" | 1/2"-13 | 1.688 | 3.062 | 4.00 | 4.00 | 4.00 |
| Code 62 Companion/Companion/Companion/Companion Crosses | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Side A Comp | Side B Comp | Side C Comp | Side D Comp | Z | GG | HH | W | T | L |
1811-12-12-12-12 | 3/4" | 3/4" | 3/4" | 3/4" | 3/8"-16 | 0.937 | 2.000 | 3.00 | 2.75 | 3.00 |
1811-16-16-16-16 | 1" | 1" | 1" | 1" | 7/16"-14 | 1.093 | 2.250 | 3.50 | 3.50 | 3.50 |
1811-20-20-20-20 | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/4" | 1/2"-13 | 1.250 | 2.625 | 4.00 | 3.75 | 4.00 |
1811-24-24-24-24 | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 5/8"-11 | 1.437 | 3.125 | 4.00 | 4.00 | 4.50 |
1811-32-32-32-32 | 2" | 2" | 2" | 2" | 3/4"-10 | 1.750 | 3.812 | 5.50 | 7.00 | 4.00 |
