Cross - Companion/Socket Weld Pipe/Companion/Socket Weld Pipe

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

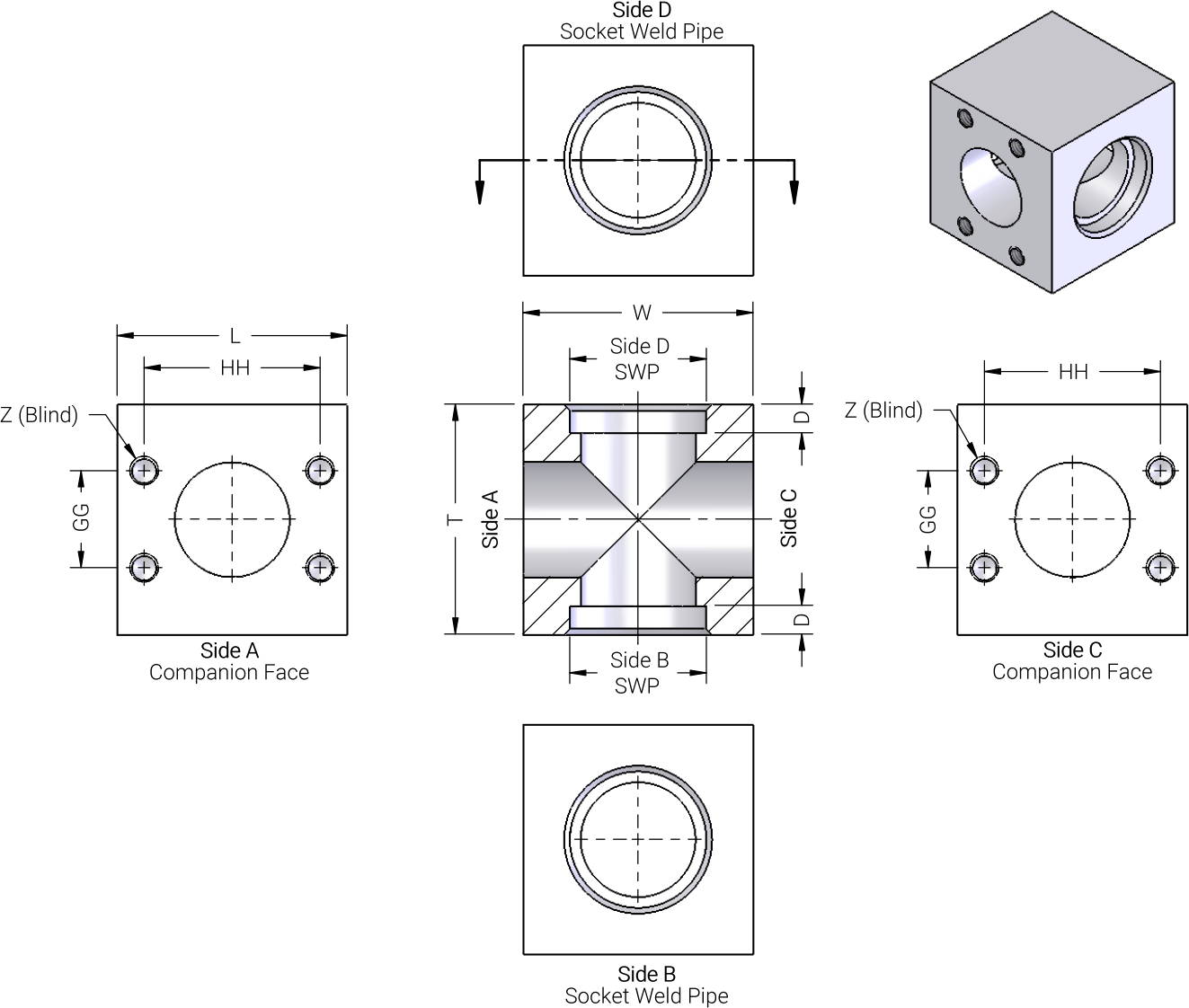

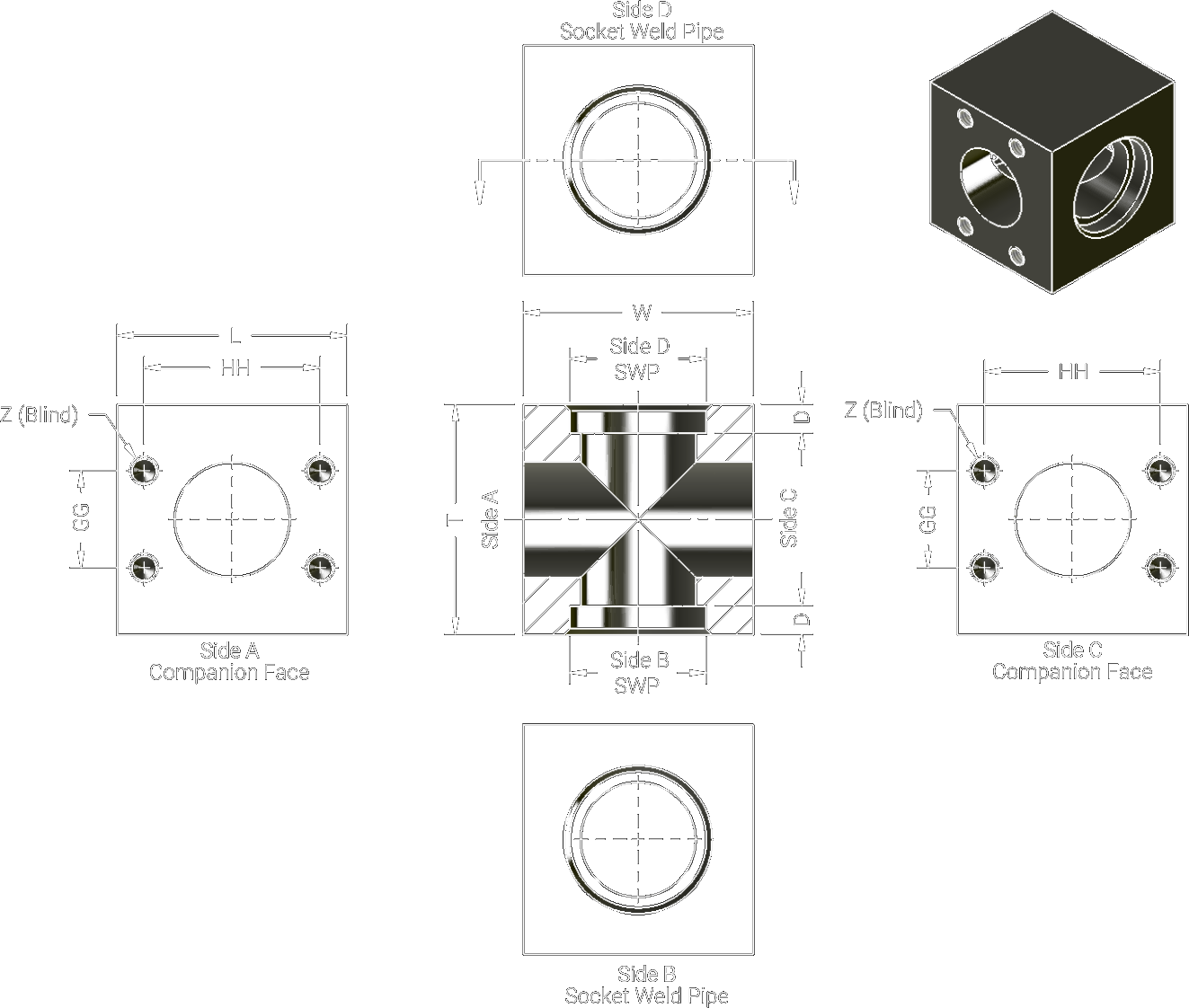

Code 61 Companion/SWP/Companion/SWP Crosses
Part Number	Side A Comp	Side B SWP	Side C Comp	Side D SWP	Z	D	GG	HH	W	T	L
2597-12-12-12-12	3/4"	3/4" (1.055)	3/4"	3/4" (1.055)	3/8"-16	-	0.875	1.875	-	-	-
2597-16-16-16-16	1"	1" (1.320)	1"	1" (1.320)	3/8"-16	-	1.031	2.062	-	-	-
2597-20-20-20-20	1-1/4"	1-1/4" (1.670)	1-1/4"	1-1/4" (1.670)	7/16"-14	-	1.188	2.312	-	-	-
2597-24-24-24-24	1-1/2"	1-1/2" (1.910)	1-1/2"	1-1/2" (1.910)	1/2"-13	-	1.406	2.750	-	-	-
2597-32-32-32-32	2"	2" (2.388)	2"	2" (2.388)	1/2"-13	-	1.688	3.062	-	-	-

Code 62 Companion/SWP/Companion/SWP Crosses
Part Number	Side A Comp	Side B SWP	Side C Comp	Side D SWP	Z	D	GG	HH	W	T	L
2633-12-12-12-12	3/4"	3/4" (1.055)	3/4"	3/4" (1.055)	3/8"-16		0.937	2.000
2633-16-16-16-16	1"	1" (1.320)	1"	1" (1.320)	7/16"-14		1.093	2.250
2633-20-20-20-20	1-1/4"	1-1/4" (1.670)	1-1/4"	1-1/4" (1.670)	1/2"-13		1.250	2.625
2633-24-24-24-24	1-1/2"	1-1/2" (1.910)	1-1/2"	1-1/2" (1.910)	5/8"-11		1.437	3.125
2633-32-32-32-32	2"	2" (2.388)	2"	2" (2.388)	3/4"-10		1.750	3.812
