Code 61 & Code 62 4-Bolt Flange Elbows

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

Code 61 Flange Style Elbows

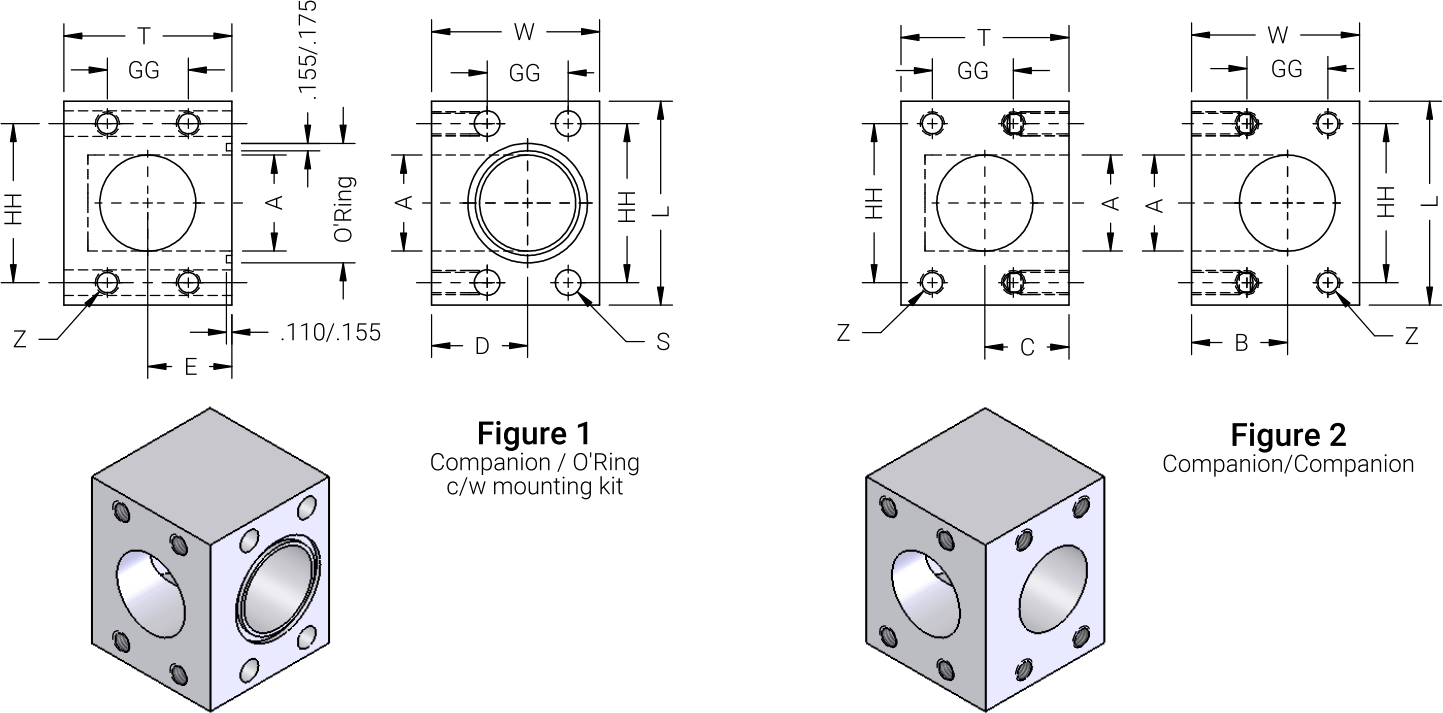

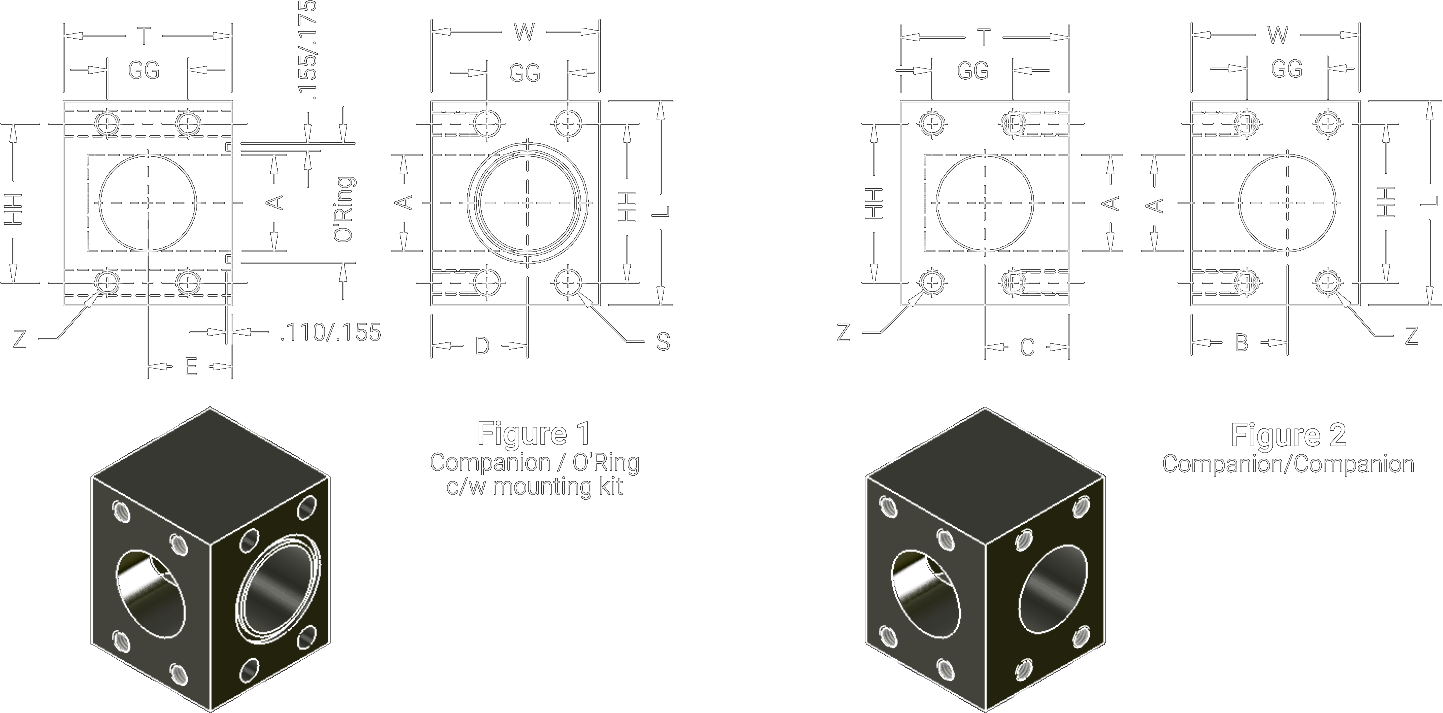

Figure 1 Comp/O-Ring	Figure 2 Comp/Comp	A	B	C	D	E	GG	HH	Z	S	O-Ring	W	T	L
2573-08-083d	2574-08-08	0.50	1.19	1.19	1.25	1.00	0.688	1.500	5/16"-18	11/32	1.000	2.00	2.00	2.13
2573-12-123d	2574-12-12	0.75	1.19	1.19	1.25	1.00	0.875	1.875	3/8"-16	13/32	1.250	2.00	2.00	2.56
2573-16-163d	2574-16-16	1.00	1.50	1.50	1.50	1.25	1.031	2.062	3/8"-16	13/32	1.560	2.50	2.50	2.75
2573-20-203d	2574-20-20	1.25	1.75	1.75	1.63	1.50	1.188	2.312	7/16"-14	15/32	1.750	3.00	3.00	3.13
2573-24-243d	2574-24-24	1.50	1.25	1.25	2.00	1.50	1.406	2.750	1/2"-13	17/32	2.115	3.00	3.00	3.69
2573-32-323d	2574-32-32	2.00	1.50	1.50	2.00	1.75	1.688	3.062	1/2"-14	17/32	2.490	3.50	3.50	4.00
2573-40-403d	2574-40-40	2.50	2.25	2.25	2.50	2.25	2.000	3.500	1/2"-15	17/32	2.995	4.50	4.00	4.50
2573-48-483d	2574-48-48	3.00	2.25	2.25	2.75	2.75	2.438	4.188	5/8"-11	21/32	3.615	5.00	5.00	5.38
2573-56-56	2574-56-56	3.50	2.25	2.25	2.75	2.75	2.750	4.750	5/8"-12	21/32	4.095	5.00	5.00	5.38
2573-64-643d	2574-64-64	4.00	2.25	2.25	3.38	3.00	3.062	5.125	5/8"-13	21/32	4.595	6.00	6.00	6.38

Code 62 Flange Style Elbows
Figure 1 Comp/O-Ring	Figure 2 Comp/Comp	A	B	C	D	E	GG	HH	Z	S	O-Ring	W	T	L
2594-08-08	2593-08-083d	0.50	1.00	1.00	1.00	1.00	0.718	1.574	5/16"-18	11/32	1.000	2.00	2.00	2.22
2594-12-12	2593-12-123d	0.75	1.25	1.25	1.50	1.50	0.937	2.000	3/8"-16	13/32	1.250	2.50	2.50	2.81
2594-16-16	2593-16-163d	1.00	1.50	1.50	1.44	1.44	1.093	2.250	7/16"-14	15/32	1.560	2.50	2.50	3.19
2594-20-20	2593-20-203d	1.25	1.75	1.75	1.81	1.81	1.250	2.625	1/2"-13	17/32	1.750	3.00	3.00	3.75
2594-24-24	2593-24-243d	1.50	2.00	2.00	2.13	2.13	1.437	3.125	5/8"-11	21/32	2.115	3.50	3.50	4.44
2594-32-32	2593-32-323d	2.00	2.25	2.25	2.31	2.31	1.750	3.812	3/4"-10	25/32	2.490	4.00	4.00	5.25
