Code 61 & Code 62 4-Bolt Elbows
NPT (National Pipe Thread) to Code 61 & Code 62 Elbows
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Code 61 NPT Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

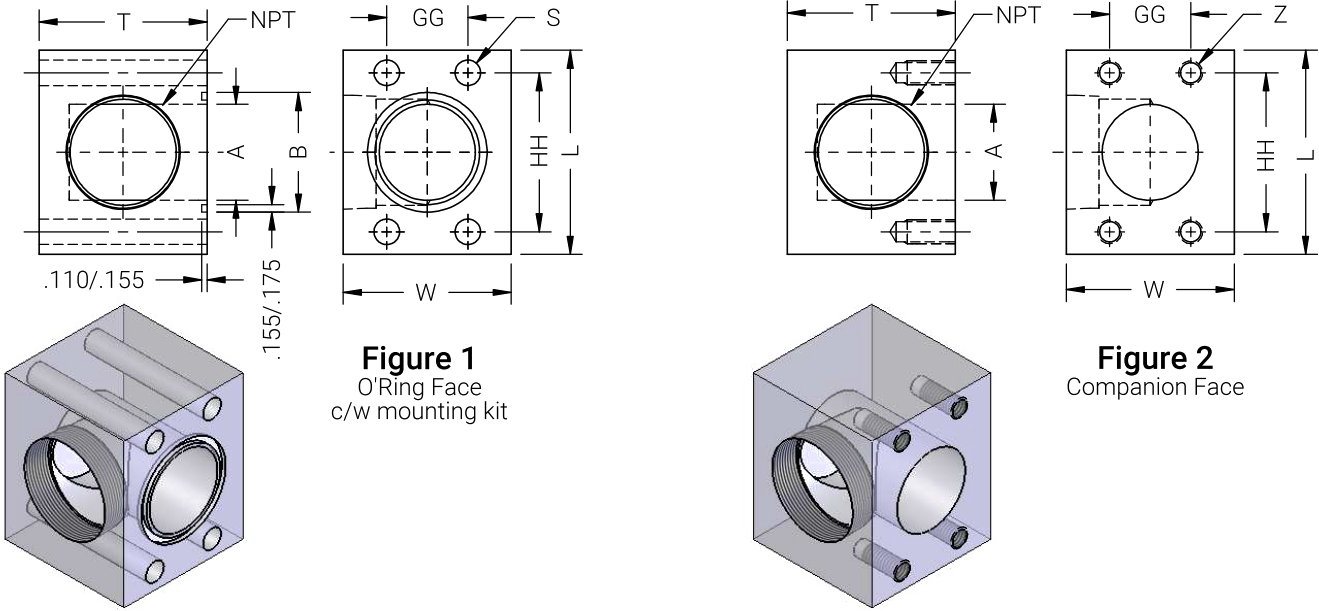

| Figure 1 O-Ring Face | Figure 2 Companion Face | NPT Size | Flange Size | A | B | S | Z | GG | HH | L | W | T |
1833-08-08 | 1835-08-08 | 1/2"-14 | 0.50 | 0.50 | 1.000 | 11/32 | 5/16"-18 | 0.688 | 1.500 | 2.19 | 1.50 | 1.50 |
1833-12-12 | 1835-12-12 | 3/4"-14 | 0.75 | 0.75 | 1.250 | 13/32 | 3/8"-16 | 0.875 | 1.875 | 2.63 | 1.75 | 1.75 |
1833-12-16 | 1835-12-16 | 3/4"-14 | 1.00 | 1.00 | 1.560 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1833-16-16 | 1835-16-16 | 1"-11.5 | 1.00 | 1.00 | 1.560 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1833-16-20 | 1835-16-20 | 1"-11.5 | 1.25 | 1.25 | 1.750 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1833-20-20 | 1835-20-20 | 1-1/4"-11.5 | 1.25 | 1.25 | 1.750 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1833-20-24 | 1835-20-24 | 1-1/4"-11.5 | 1.50 | 1.50 | 2.115 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1833-24-24 | 1835-24-24 | 1-1/2"-11.5 | 1.50 | 1.50 | 2.115 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1833-24-32 | 1835-24-32 | 1-1/2"-11.5 | 2.00 | 2.00 | 2.490 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
1833-32-32 | 1835-32-32 | 2"-11.5 | 2.00 | 2.00 | 2.490 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
1833-32-40 | 1835-32-40 | 2"-11.5 | 2.50 | 2.50 | 2.995 | 17/32 | 1/2"-13 | 2.000 | 3.500 | 4.50 | 4.00 | 4.00 |
1833-40-40 | 1835-40-40 | 2-1/2"-8 | 2.50 | 2.50 | 2.995 | 17/32 | 1/2"-13 | 2.000 | 3.500 | 4.50 | 4.00 | 4.00 |
1833-48-48 | 1835-48-48 | 3"-8 | 3.00 | 3.00 | 3.615 | 21/32 | 5/8"-11 | 2.438 | 4.188 | 5.31 | 4.50 | 4.50 |
1833-56-56 | 1835-56-56 | 3-1/2"-8 | 3.50 | 3.50 | 4.095 | 21/32 | 5/8"-11 | 2.750 | 4.750 | 6.00 | 5.00 | 5.00 |
1833-64-64 | 1835-64-64 | 4"-8 | 4.00 | 4.00 | 4.595 | 21/32 | 5/8"-11 | 3.062 | 8.125 | 6.38 | 6.00 | 6.00 |
| Code 62 NPT Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure 1 O-Ring Face | Figure 2 Companion Face | ORB Size | Flange Size | A | B | S | Z | GG | HH | L | W | T |
1846-08-08 | 1844-08-08 | 1/2"-14 | 0.50 | 0.50 | 1.000 | 11/32 | 5/16"-18 | 0.718 | 1.574 | 2.22 | 1.75 | 1.75 |
1846-12-12 | 1844-12-12 | 3/4"-14 | 0.75 | 0.75 | 1.250 | 13/32 | 3/8"-16 | 0.937 | 2.000 | 2.81 | 2.00 | 2.00 |
1846-12-16 | 1844-12-16 | 3/4"-14 | 1.00 | 1.00 | 1.560 | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1846-16-16 | 1844-16-16 | 1"-11.5 | 1.00 | 1.00 | 1.560 | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1846-16-20 | 1844-16-20 | 1"-11.5 | 1.25 | 1.25 | 1.750 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1846-20-20 | 1844-20-20 | 1-1/4"-11.5 | 1.25 | 1.25 | 1.750 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1846-20-24 | 1844-20-24 | 1-1/4"-11.5 | 1.50 | 1.50 | 2.115 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1846-24-24 | 1844-24-24 | 1-1/2"-11.5 | 1.50 | 1.50 | 2.115 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1846-24-32 | 1844-24-32 | 1-1/2"-11.5 | 2.00 | 2.00 | 2.490 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
1846-32-32 | 1844-32-32 | 2"-11.5 | 2.00 | 2.00 | 2.490 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
