Code 61 & Code 62 4-Bolt Elbows
ORB (O-Ring Boss) to Code 61 & Code 62 Elbows
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Code 61 ORB Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

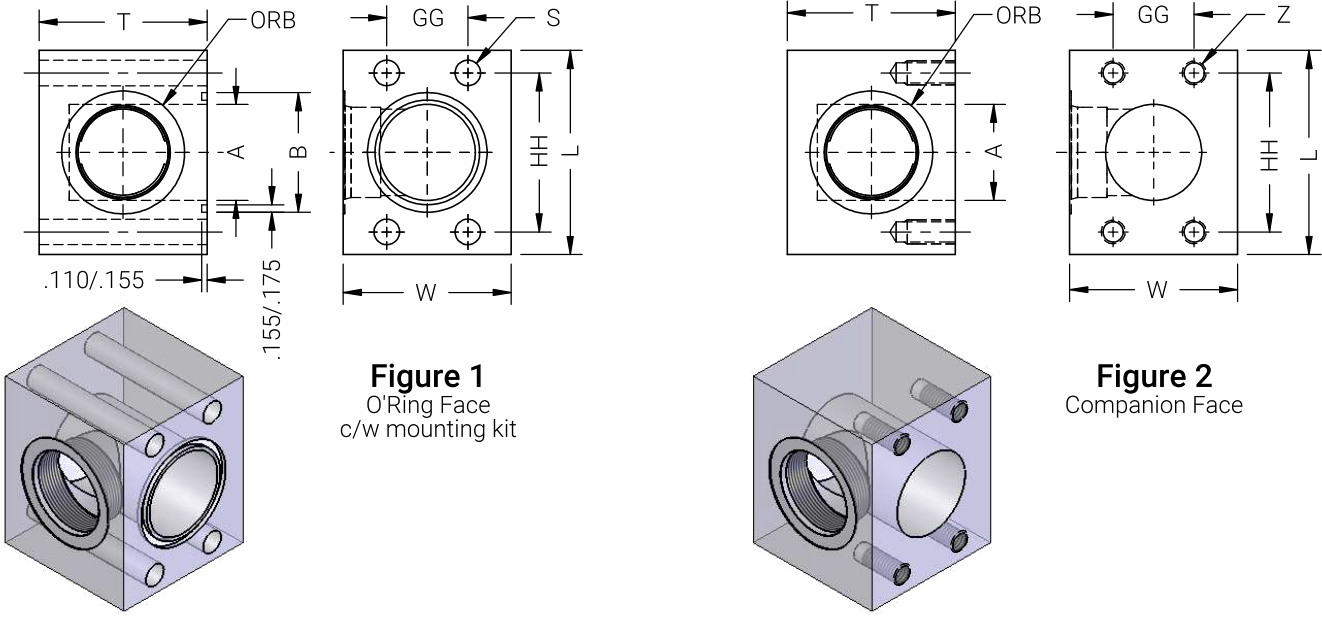

| Figure 1 O-Ring Face | Figure 2 Companion Face | ORB Size | Flange Size | A | B | S | Z | GG | HH | L | W | T |
1815-08-08 | 1817-08-08 | #8 (3/4"-16) | 0.50 | 0.50 | 1.000 | 11/32 | 5/16"-18 | 0.688 | 1.500 | 2.19 | 1.50 | 1.50 |
1815-12-12 | 1817-12-12 | #12 (1-1/16"-12) | 0.75 | 0.75 | 1.250 | 13/32 | 3/8"-16 | 0.875 | 1.875 | 2.63 | 1.75 | 1.75 |
1815-12-16 | 1817-12-16 | #12 (1-1/16"-12) | 1.00 | 1.00 | 1.560 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1815-16-16 | 1817-16-16 | #16 (1-5/16"-12) | 1.00 | 1.00 | 1.560 | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1815-16-20 | 1817-16-20 | #16 (1-5/16"-12) | 1.25 | 1.25 | 1.750 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1815-20-20 | 1817-20-20 | #20 (1-5/8"-12) | 1.25 | 1.25 | 1.750 | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1815-20-24 | 1817-20-24 | #20 (1-5/8"-12) | 1.50 | 1.50 | 2.115 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1815-24-24 | 1817-24-24 | #24 (1-7/8"-12) | 1.50 | 1.50 | 2.115 | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1815-24-32 | 1817-24-32 | #24 (1-7/8"-12) | 2.00 | 2.00 | 2.490 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
1815-32-32 | 1817-32-32 | #32 (2-1/2"-12) | 2.00 | 2.00 | 2.490 | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
1815-32-40 | 1817-32-40 | #32 (2-1/2"-12) | 2.50 | 2.50 | 2.995 | 17/32 | 1/2"-13 | 2.000 | 3.500 | 4.50 | 4.00 | 4.00 |
| Code 62 ORB Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure 1 O-Ring Face | Figure 2 Companion Face | ORB Size | Flange Size | A | B | S | Z | GG | HH | L | W | T |
1842-08-08 | 1840-08-08 | #8 (3/4"-16) | 0.50 | 0.50 | 1.000 | 11/32 | 5/16"-18 | 0.718 | 1.574 | 2.22 | 1.75 | 1.75 |
1842-12-12 | 1840-12-12 | #12 (1-1/16"-12) | 0.75 | 0.75 | 1.250 | 13/32 | 3/8"-16 | 0.937 | 2.000 | 2.81 | 2.00 | 2.00 |
1842-12-16 | 1840-12-16 | #12 (1-1/16"-12) | 1.00 | 1.00 | 1.560 | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1842-16-16 | 1840-16-16 | #16 (1-5/16"-12) | 1.00 | 1.00 | 1.560 | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1842-16-20 | 1840-16-20 | #16 (1-5/16"-12) | 1.25 | 1.25 | 1.750 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1842-20-20 | 1840-20-20 | #20 (1-5/8"-12) | 1.25 | 1.25 | 1.750 | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1842-20-24 | 1840-20-24 | #20 (1-5/8"-12) | 1.50 | 1.50 | 2.115 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1842-24-24 | 1840-24-24 | #24 (1-7/8"-12) | 1.50 | 1.50 | 2.115 | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1842-24-32 | 1840-24-32 | #24 (1-7/8"-12) | 2.00 | 2.00 | 2.490 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
1842-32-32 | 1840-32-32 | #32 (2-1/2"-12) | 2.00 | 2.00 | 2.490 | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
