Code 61 & Code 62 4-Bolt Elbows
SWT (Socket Weld Tube) to Code 61 & Code 62 Elbows
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Code 61 SWT Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

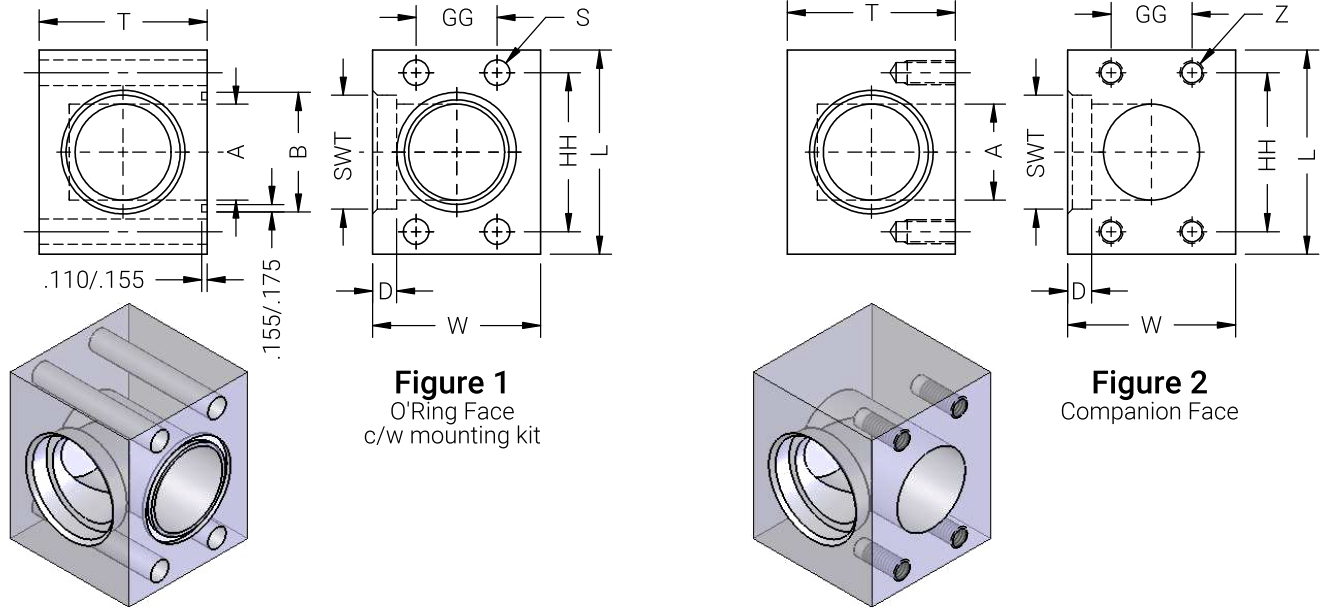

| Figure 1 O-Ring Face | Figure 2 Companion Face | SWT Size (OD) | Flange Size | A | D | S | Z | GG | HH | L | W | T |
1829-08-08 | 1831-08-08 | 1/2" (0.510) | 0.50 | 0.50 | - | 11/32 | 5/16"-18 | 0.688 | 1.500 | 2.19 | 1.50 | 1.50 |
1829-12-08 | 1831-12-08 | 3/4"(0.760) | 0.50 | 0.50 | - | 11/32 | 5/16"-18 | 0.688 | 1.500 | 2.19 | 1.50 | 1.50 |
1829-12-12 | 1831-12-12 | 3/4" (0.760) | 0.75 | 0.75 | - | 13/32 | 3/8"-16 | 0.875 | 1.875 | 2.63 | 1.75 | 1.75 |
1829-16-12 | 1831-16-12 | 1" (1.010) | 0.75 | 0.75 | - | 13/32 | 3/8"-16 | 0.875 | 1.875 | 2.63 | 1.75 | 1.75 |
1829-16-16 | 1831-16-16 | 1" (1.010) | 1.00 | 1.00 | - | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1829-20-16 | 1831-20-16 | 1-1/4" (1.260) | 1.00 | 1.00 | - | 13/32 | 3/8"-16 | 1.031 | 2.062 | 2.81 | 2.00 | 2.00 |
1829-20-20 | 1831-20-20 | 1-1/4" (1.260) | 1.25 | 1.25 | - | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1829-24-20 | 1831-24-20 | 1-1/2" (1.510) | 1.25 | 1.25 | - | 15/32 | 7/16"-14 | 1.188 | 2.312 | 3.19 | 2.50 | 2.50 |
1829-24-24 | 1831-24-24 | 1-1/2" (1.510 | 1.50 | 1.50 | - | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1829-28-24 | 1831-28-24 | 1-3/4" (1.760) | 1.50 | 1.50 | - | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1829-32-24 | 1831-32-24 | 2" (2.010) | 1.50 | 1.50 | - | 17/32 | 1/2"-13 | 1.406 | 2.750 | 3.69 | 3.00 | 3.00 |
1829-32-32 | 1831-32-32 | 2" (2.010 | 2.00 | 2.00 | - | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
1829-40-32 | 1831-40-32 | 2-1/2" (2.510) | 2.00 | 2.00 | - | 17/32 | 1/2"-13 | 1.688 | 3.062 | 4.00 | 3.50 | 3.50 |
| Code 62 SWT Elbows | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Figure 1 O-Ring Face | Figure 2 Companion Face | SWT Size (OD) | Flange Size | A | D | S | Z | GG | HH | L | W | T |
1838-08-08 | 1836-08-08 | 1/2" (0.510) | 0.50 | 0.50 | - | 11/32 | 5/16"-18 | 0.718 | 1.574 | 2.22 | 1.75 | 1.75 |
1838-12-08 | 1836-12-08 | 3/4"(0.760) | 0.50 | 0.50 | - | 11/32 | 5/16"-18 | 0.718 | 1.574 | 2.22 | 1.75 | 1.75 |
1838-12-12 | 1836-12-12 | 3/4" (0.760) | 0.75 | 0.75 | - | 13/32 | 3/8"-16 | 0.937 | 2.000 | 2.81 | 2.00 | 2.00 |
1838-16-12 | 1836-16-12 | 1" (1.010) | 0.75 | 0.75 | - | 13/32 | 3/8"-16 | 0.937 | 2.000 | 2.81 | 2.00 | 2.00 |
1838-16-16 | 1836-16-16 | 1" (1.010) | 1.00 | 1.00 | - | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1838-20-16 | 1836-20-16 | 1-1/4" (1.260) | 1.00 | 1.00 | - | 15/32 | 7/16"-14 | 1.093 | 2.250 | 3.19 | 2.50 | 2.50 |
1838-20-20 | 1836-20-20 | 1-1/4" (1.260) | 1.25 | 1.25 | - | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1838-24-20 | 1836-24-20 | 1-1/2" (1.510) | 1.25 | 1.25 | - | 17/32 | 1/2"-13 | 1.250 | 2.625 | 3.75 | 3.00 | 3.00 |
1838-24-24 | 1836-24-24 | 1-1/2" (1.510 | 1.50 | 1.50 | - | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1838-28-24 | 1836-28-24 | 1-3/4" (1.760) | 1.50 | 1.50 | - | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1838-32-24 | 1836-32-24 | 2" (2.010) | 1.50 | 1.50 | - | 21/32 | 5/8"-11 | 1.437 | 3.125 | 4.44 | 3.50 | 3.50 |
1838-32-32 | 1836-32-32 | 2" (2.010 | 2.00 | 2.00 | - | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
1838-40-32 | 1836-40-32 | 2-1/2" (2.510) | 2.00 | 2.00 | - | 25/32 | 3/4"-10 | 1.750 | 3.812 | 5.25 | 4.00 | 4.00 |
