Code 61 & Code 62 Tee - Comp/Comp/Comp

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

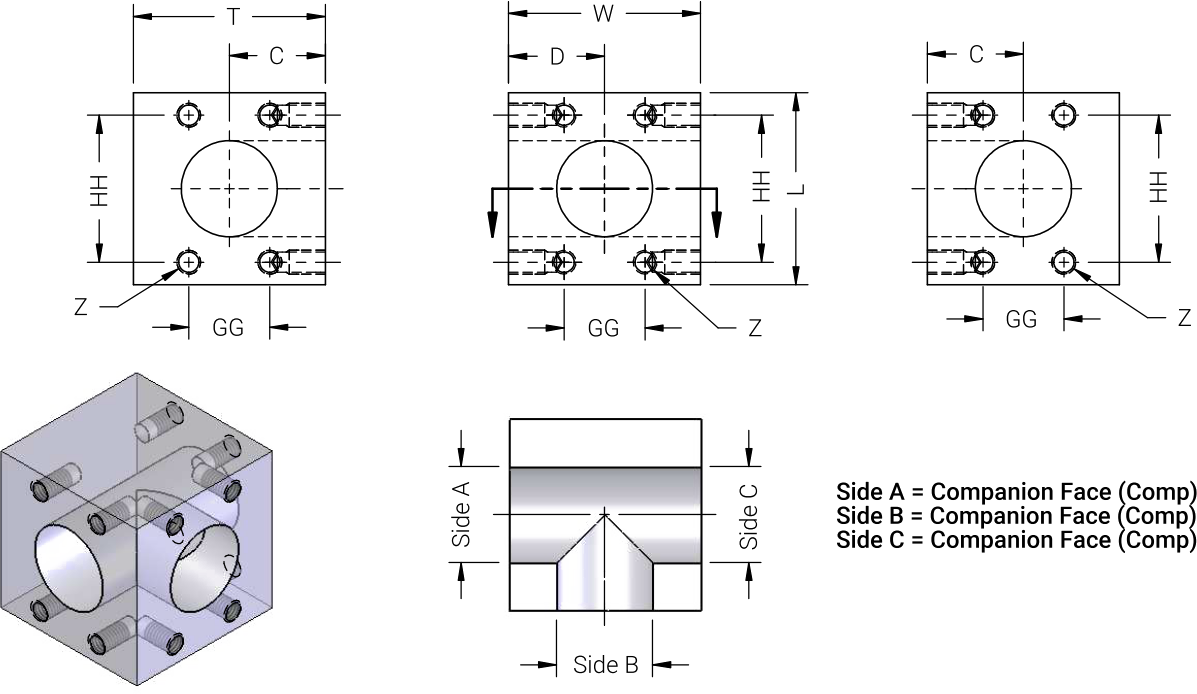

Code 61 Companion/Companion/Companion Tees
Part Number	Side A Comp	Side B Comp	Side C Comp	C	D	Z	GG	HH	L	W	T
1806-08-08-08	0.50	0.50	0.50	1.250	0.750	5/16"-18	0.688	1.500	2.000	1.500	2.000
1806-12-12-12	0.75	0.75	0.75	1.500	0.875	3/8"-16	0.875	1.875	2.500	1.750	2.500
1806-16-16-16	1.00	1.00	1.00	1.500	1.000	3/8"-16	1.031	2.062	2.750	2.000	2.500
1806-20-20-20	1.25	1.25	1.25	1.625	1.250	7/16"-14	1.188	2.312	3.125	2.500	3.000
1806-24-24-24	1.50	1.50	1.50	1.875	1.500	1/2"-13	1.406	2.750	3.688	3.000	3.500
1806-32-32-32	2.00	2.00	2.00	2.25	1.75	1/2"-13	1.688	3.062	4.00	3.50	4.00
1806-40-40-40	2.50	2.50	2.50	2.25	1.75	1/2"-13	2.000	3.500	4.00	3.50	4.00
1806-48-48-48	3.00	3.00	3.00	2.25	1.75	5/8"-11	2.438	4.188	4.00	3.50	4.00
1806-56-56-56	3.50	3.50	3.50	2.25	1.75	5/8"-11	2.750	4.750	4.00	3.50	4.00
1806-64-64-64	4.00	4.00	4.00	2.25	1.75	5/8"-11	3.062	5.125	4.00	3.50	4.00

Code 62 Companion/Companion/Companion Tees
Part Number	Side A Comp	Side B Comp	Side C Comp	C	D	Z	GG	HH	L	W	T
1807-08-08-08	0.50	0.50	0.50			5/16"-18	0.718	1.574
1807-12-12-12	0.75	0.75	0.75			3/8"-16	0.937	2.000
1807-16-16-16	1.00	1.00	1.00	1.63	1.75	7/16"-14	1.093	2.250	3.19	3.50	3.50
1807-20-20-203d	1.25	1.25	1.25	1.63	1.75	1/2"-13	1.250	2.625	3.19	3.50	3.50
1807-24-24-243d	1.50	1.50	1.50	1.63	1.75	5/8"-11	1.437	3.125	3.19	3.50	3.50
1807-32-32-32	2.00	2.00	2.00	2.75	2.25	3/4"-10	1.750	3.812	5.25	4.50	4.50
