High Pressure Ball Valves
Introduction
Checking for product data from the server...
or contact them here:

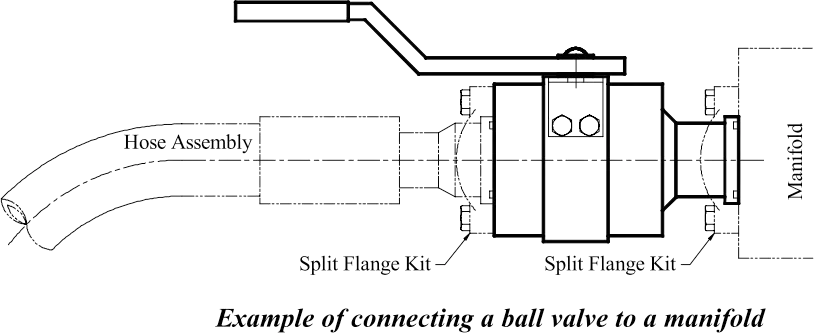

CONTACT PAGESEALUM high-pressure ball valves utilize SAE J518 four-bolt flange technology to eliminate leaks so common with traditional pipe thread ball valves. With companion faces, virtually any ORing face flange adapter or hose head can be mounted directly to the valve itself, or by using ORing heads it can be mounted directly onto manifolds, cylinders or any four-bolt companion flange. With three different configurations to choose from, SEALUM ball valves will complement any hydraulic system.
MATERIALS
- Ball: 4140 Heat Treated Steel
- Stem: 4140 Heat Treated Steel
- Body: C1018 Steel
- Handle: G40.21-44W Plate
- Ball Seats: Delrin
- O-Ring Head: C1040 Steel
- Companion Cover: C1018 Steel
PRODUCT FEATURES
- Bore: All valves are full bore ball valves.
- Cover: Four-bolt companion covers can be rotated to any 90º position.
- Mounting: Two threaded mounting holes in base of valve .
- Pressure: Pressure ratings are based upon SAE Code 61 and Code 62.
- Options: Mounting brackets are available to mount a limit or proximity switch to
- Handle: Can be assembled in any of four 90º positions, and can be pad locked in the open or closed position (pad lock not included).
