Breather Adapters
Bayonet Style & NPT Breather Adapters
Checking for product data from the server...
or contact them here:
CONTACT PAGEWhen installed on new units or retrofitted to existing units, Sealum air breather adapters allow the hydraulic tank to breath and let the level of oil move up and down. Bayonet style breather adapters can be installed onto any existing bayonet style filler adapter, while the threaded breather adapters can be installed into any NPT port such as scullys and couplings. Both style adapters will accept standard filter or breather element.

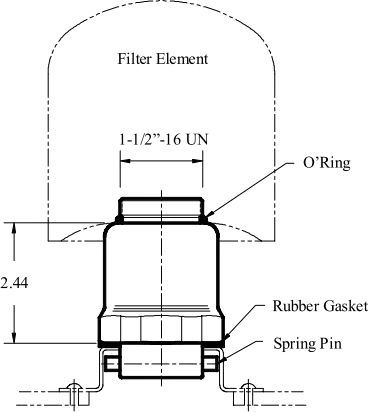

Bayonet Style Air Breather Adapter
Part Number: 2106
Material: Zinc Plated C1045 Steel
Comes with ORing & Gaske

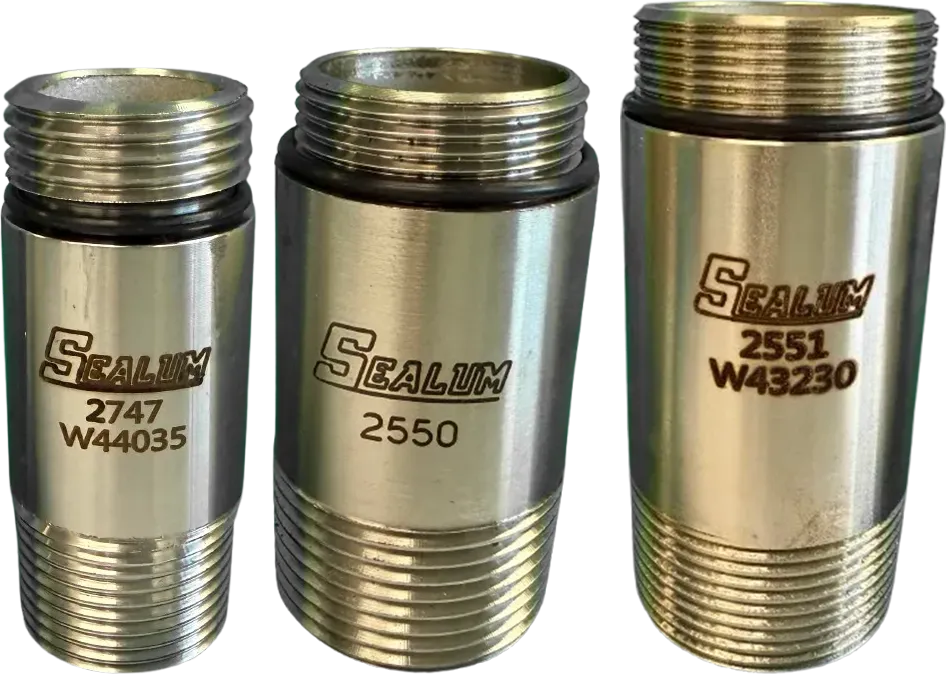

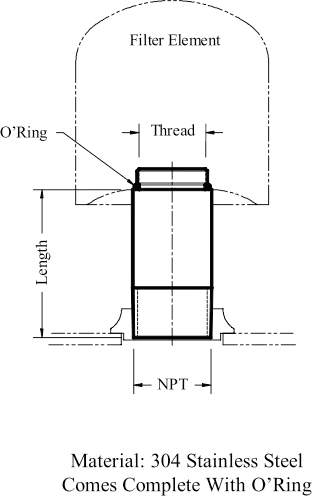

NPT (National Pipe Thread) Breather Adapter
| NPT Breather Adapters | |||
|---|---|---|---|
| Part Number | Length | NPT | Thread |
| 2747 | 2.00" | 3/4" | 1"-12 |
| 2550 | 2.13" | 1" | 1-1/8"-16 |
| 2551 | 3.00" | 1-1/4" | 1-1/2"-16 |
