Inline Check Valves
Free Flow Reversing Procedure
Checking for product data from the server...
or contact them here:

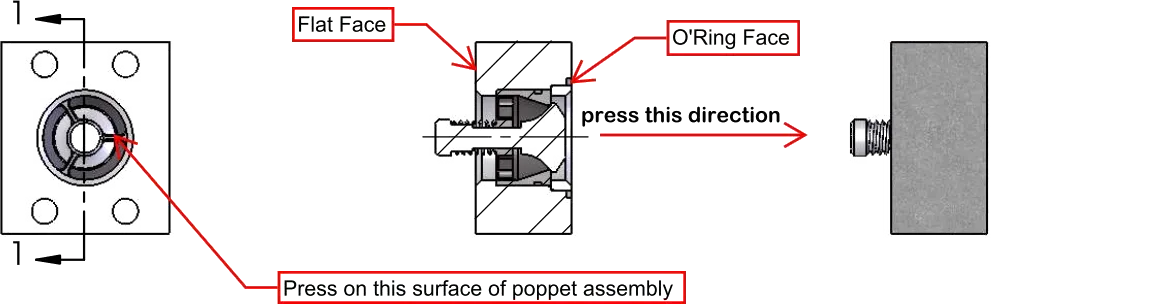

CONTACT PAGESTEP #1 - Press poppet assembly only towards O-Ring Face on the check body.

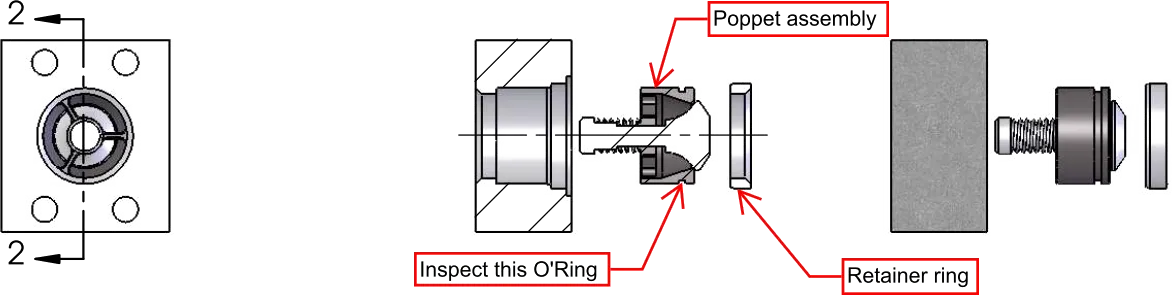

STEP #2 - Poppet assembly and retainer will come out of check body. Inspect O-Ring for damage, replace if needed.

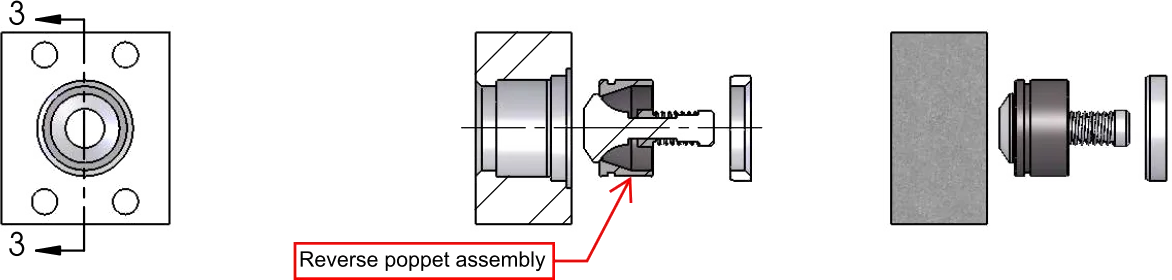

STEP #3 - Reverse poppet assembly as shown. DO NOT reverse retainer ring.

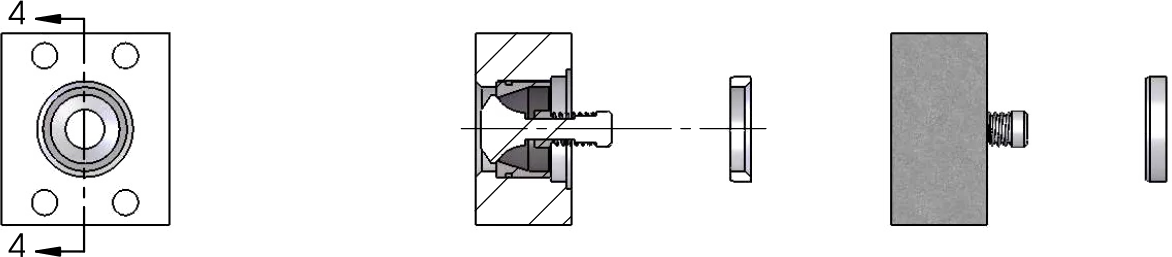

STEP #4 - Insert reversed poppet assembly into body.

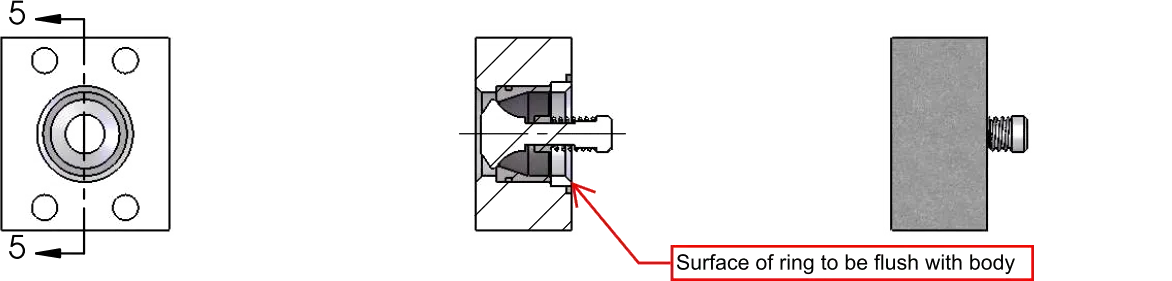

STEP #5 - Press retainer ring into body. Surface of ring should not protrude past surface of body.
