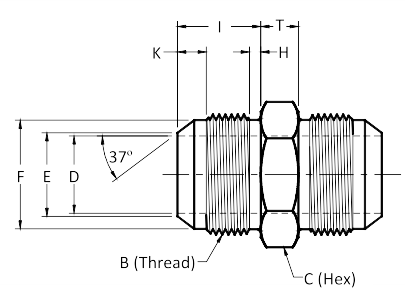

Joint Industry Council (JIC) Specification
| Nom. Size | Dash No. | B UNF Thread | C Hex | D | E ±.003 | F +.000 -.005 | H +.015 -.000 | I ±.015 | K +.015 -.000 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | -02 | 5/16”-24 | 7/16 | .062 | .083 | .245 | .063 | .448 | .177 | .22 |
| 3/16 | -03 | 3/8”-24 | 7/16 | .125 | .146 | .307 | .063 | .479 | .177 | .22 |
| 1/4 | -04 | 7/16”-20 | 1/2 | .172 | .193 | .359 | .075 | .550 | .193 | .22 |
| 5/16 | -05 | 1/2”-20 | 9/16 | .234 | .255 | .421 | .075 | .550 | .193 | .22 |
| 3/8 | -06 | 9/16”-18 | 5/8 | .297 | .318 | .476 | .083 | .556 | .198 | .25 |
| 1/2 | -08 | 3/4”-16 | 13/16 | .391 | .426 | .654 | .094 | .657 | .253 | .25 |
| 5/8 | -10 | 7/8”-14 | 15/16 | .484 | .539 | .767 | .107 | .758 | .266 | .31 |
| 3/4 | -12 | 1-1/16”-12 | 1-1/8 | .609 | .664 | .938 | .125 | .864 | .315 | .38 |
| 7/8 | -14 | 1-3/16”-12 | 1-1/4 | .718 | .788 | 1.063 | .125 | .890 | .315 | .38 |
| 1 | -16 | 1-5/16”-12 | 1-3/8 | .844 | .913 | 1.188 | .125 | .911 | .315 | .38 |
| 1-1/4 | -20 | 1-5/8”-12 | 1-11/16 | 1.078 | 1.147 | 1.501 | .125 | .958 | .367 | .46 |
| 1-1/2 | -24 | 1-7/8”-12 | 2 | 1.312 | 1.381 | 1.750 | .125 | 1.083 | .378 | .53 |
| 2 | -32 | 2-1/2”-12 | 2-5/8 | 1.781 | 1.880 | 2.375 | .125 | 1.333 | .461 | .68 |
